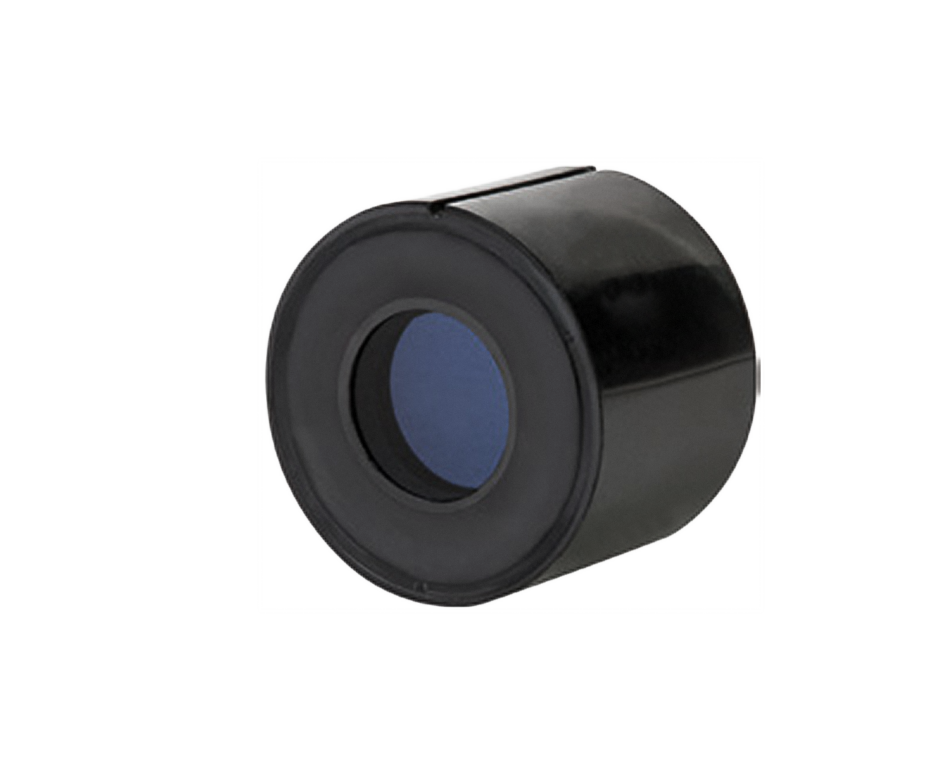

AGM 10130 Series 18 mm Gen 3 Image Intensifiers are designed for use in all variants of the AN/PVS-7 type night vision goggles and night vision clip on systems. Each of these Image Intensifiers features a high-efficiency gallium arsenide photocathode bonded to a glass input window, a Microchannel Plate electron amplifier and P-43 (green) or P-45 (white) phosphor screen on a non-inverting fiberoptic output window. AGM IIT offers high signal-to-noise ratio and high resolution which in turn provide user with extended detection range along with excellent identification in low-light conditions. AGM IITs are equipped with Auto-Gated power supply for top performance in dynamic lighting environments.
AGM 10130 Series 18 mm Gen 3 Image Intensifiers can be used in night vision devices such as PVS-7, FoxBat-LE, Comanche-22, along with number of other systems available on consumer market. AGM 10130-F1800 IITs are designed to give optimal performance while being in compliance with FOM 1800 export requirements.
Warning: California's Proposition 65
Zone 1 - 0.295 inch diameter circle in center of optic.
Zone 2 - 0.295 to 0.580 inch annulus concentric with Zone 1.
Zone 3 - 0.580 to 0.710 inch annulus concentric with Zone 2.
| Spot Size (in) | MAXIMUM SPOTS ALLOWED IN EACH ZONE | ||
|---|---|---|---|
| Zone 1 | Zone 2 | Zone 3 | |
| > .009 or larger | 0 | 0 | 0 |
| > .006 - .009 | 0 | 1 | 1 |
| .003 – .006 | 0 | 2 | 2 |
| Total Spots | 3 spots maximum allowed | ||
Notes:
