Secutor LRF-C 50-640

Part #SECU50-640C-LRF
0 reviews | Write a review
Part #SECU50-640C-LRF
0 reviews | Write a review

Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 640 x 512

Base Magnification: 1×

FOV: 8.8° × 7.0°

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Compare
$4,394.50
Quick Order
Add to cart

Description And features

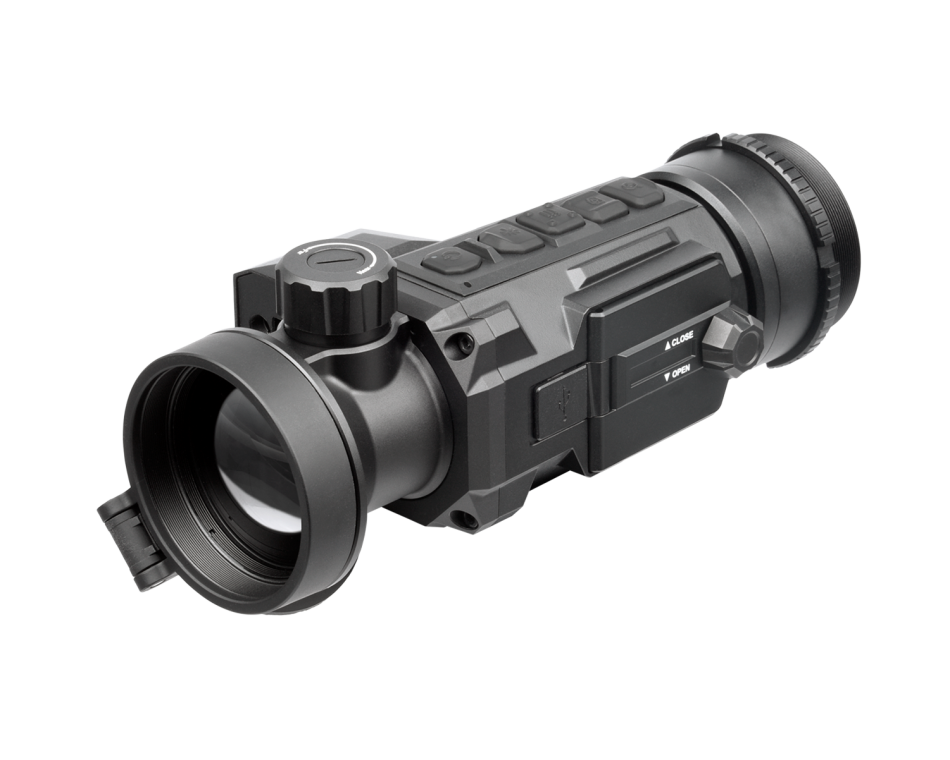

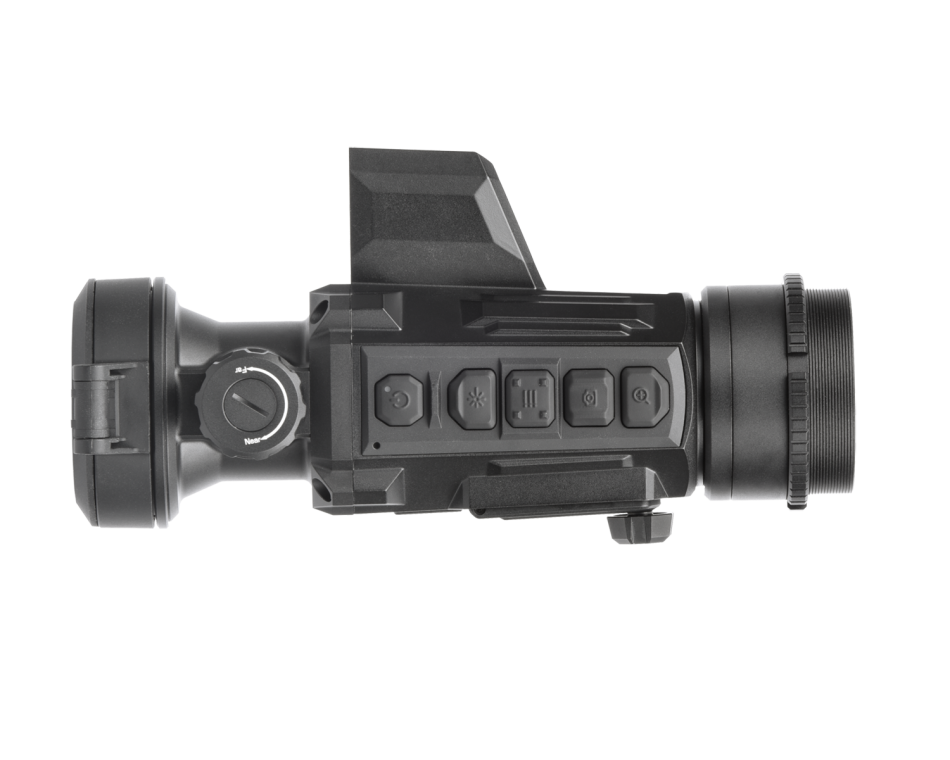

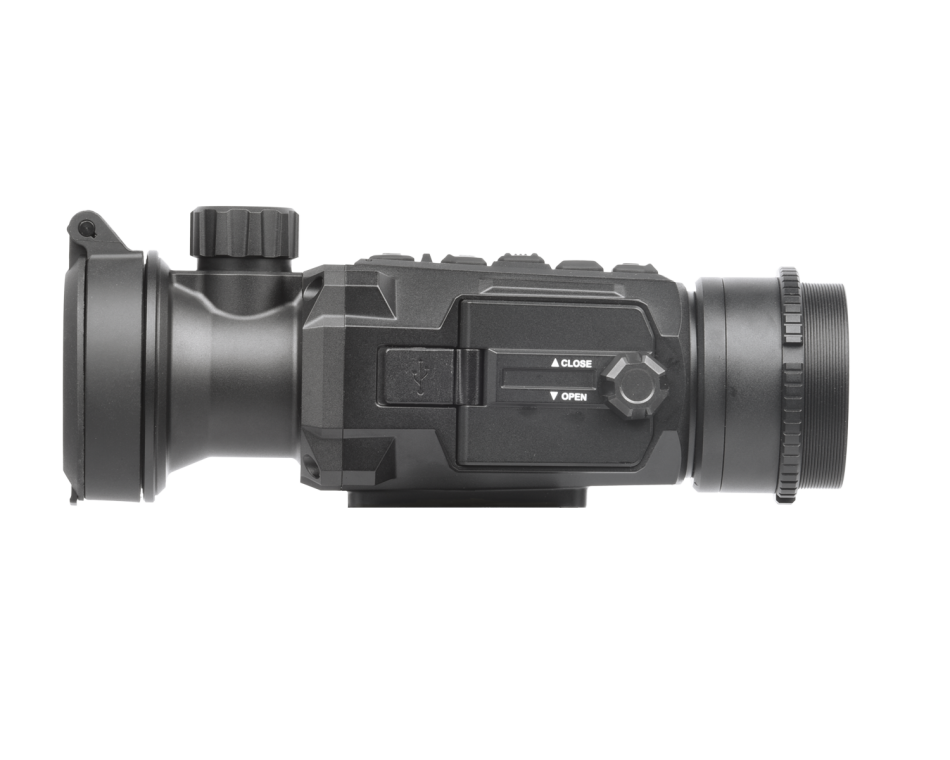

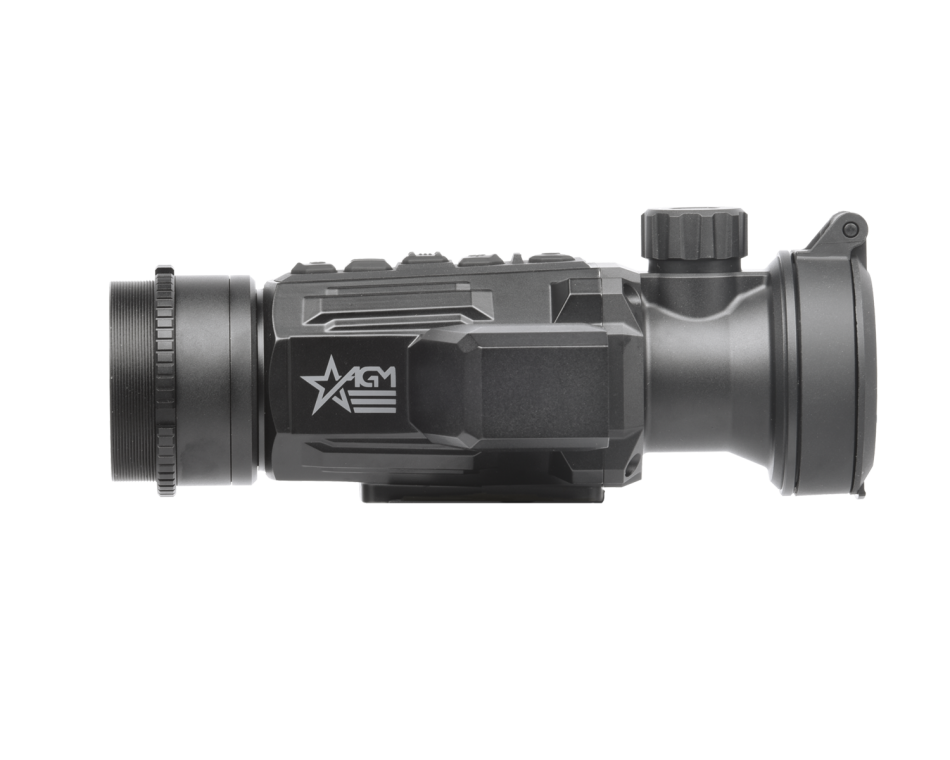

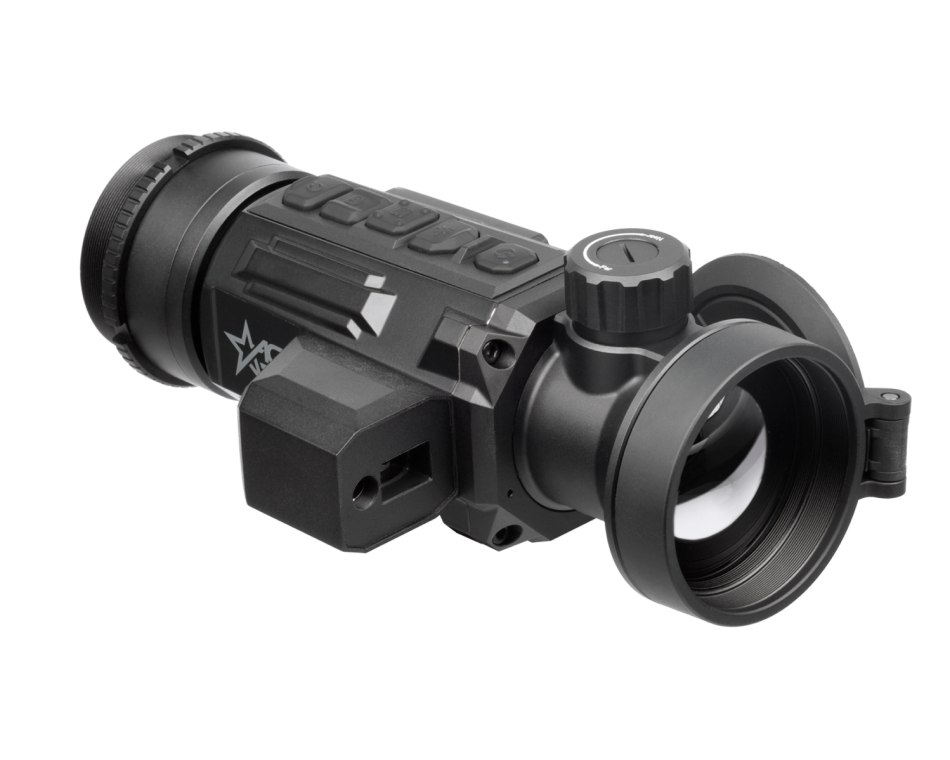

The Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The user-friendly interface, comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.

The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor. Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.

Warning: California's Proposition 65

Specifications

Exit Pupil Diameter

22 mm

Detector type

12μm VOx Uncooled Focal Plane Array

Response Waveband

8 μm to 14 μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

50 Hz

Resolution

640 × 512

Lens system

50 mm; F1.0

NETD

Less than 20 mk (@25°C), F#=1.0

Field of view (H × X)

8.8° × 7.0°

Monitor

1024x768, 0.39 inch, OLED

Storage

16 GB EMMC

Capture Snapshot

Yes

Battery Type

Four CR123A Lithium Battery

Wi-Fi

Yes

Battery Operating Time

Мore than 6 hours

External power supply

5 VDC/2 A, USB Type-C

Operating Temperature Range

-30°C to 55°C (-22°F to 131°F)

Weight

0.63 kg (1.38 lb)

Protection Level

IP67
