  • COMANCHE-40 Night Vision Clip-On - 3AW1 - Gen 3 Auto-Gated White Phosphor "Level 1"

COMANCHE-40 Night Vision Clip-On - 3AW1 - Gen 3 Auto-Gated White Phosphor "Level 1"

Part #16CO4123484111
1 reviews | Write a review
Part #16CO4123484111
1 reviews | Write a review
Characteristics

Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 1"

Magnification: 1x

Lens System: 80 mm; F/1.44

FOV: 12°

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Compare
Downloads
User Manual

Description And features

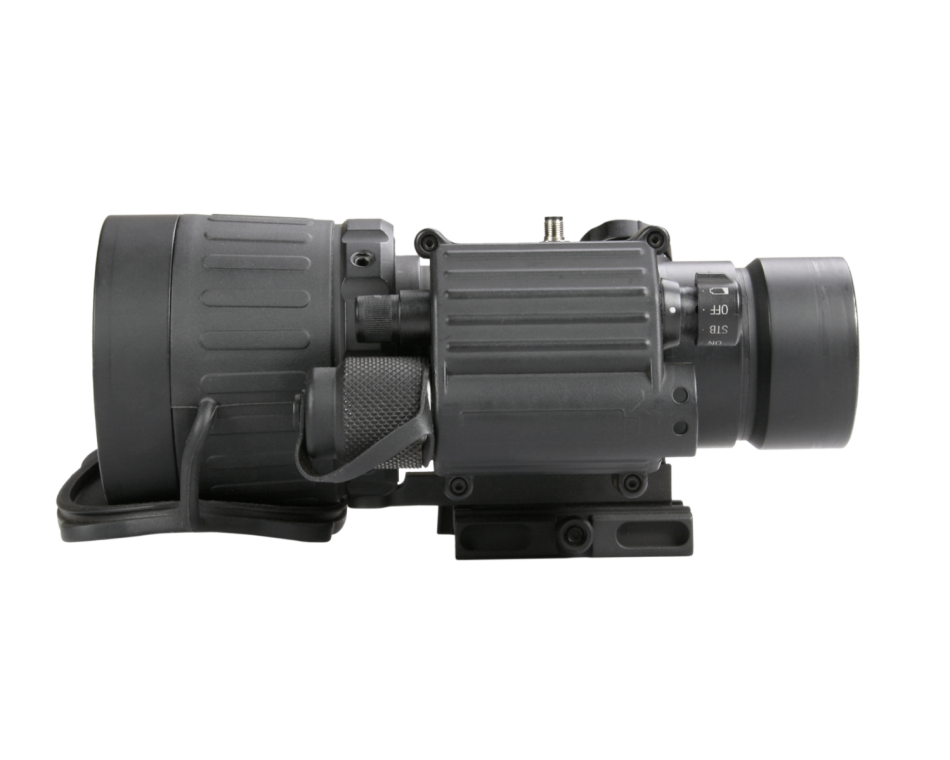

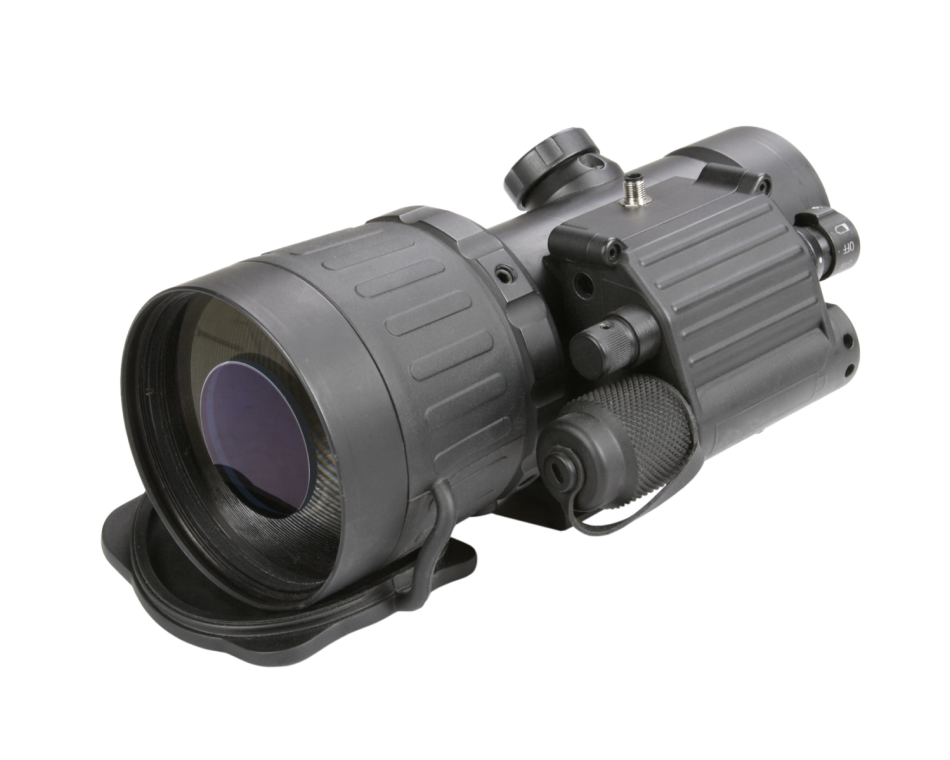

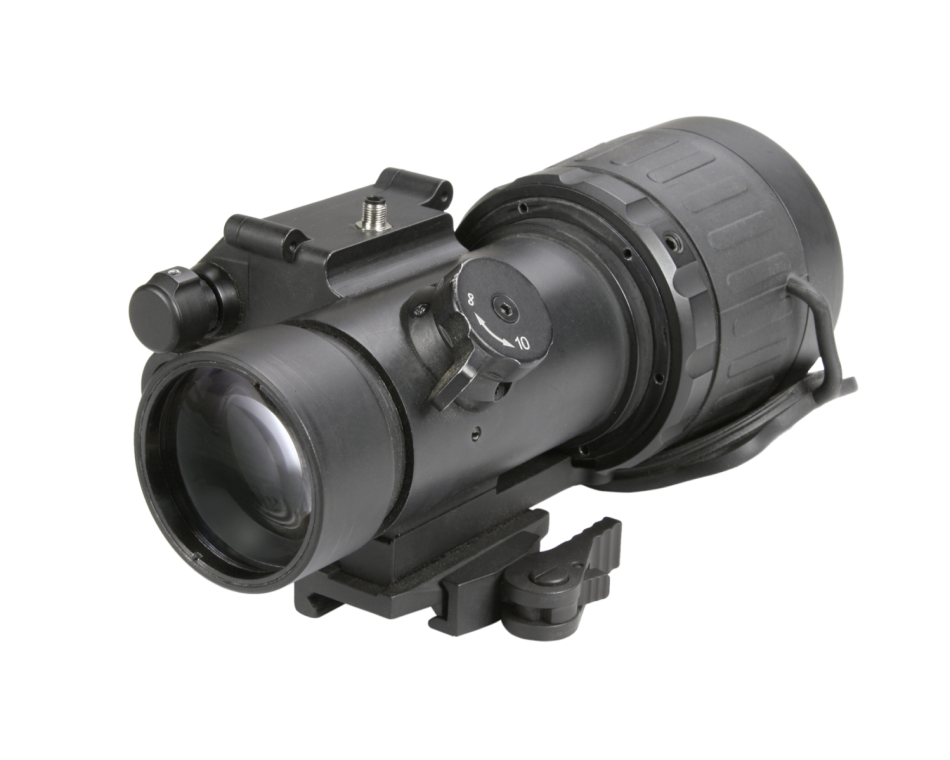

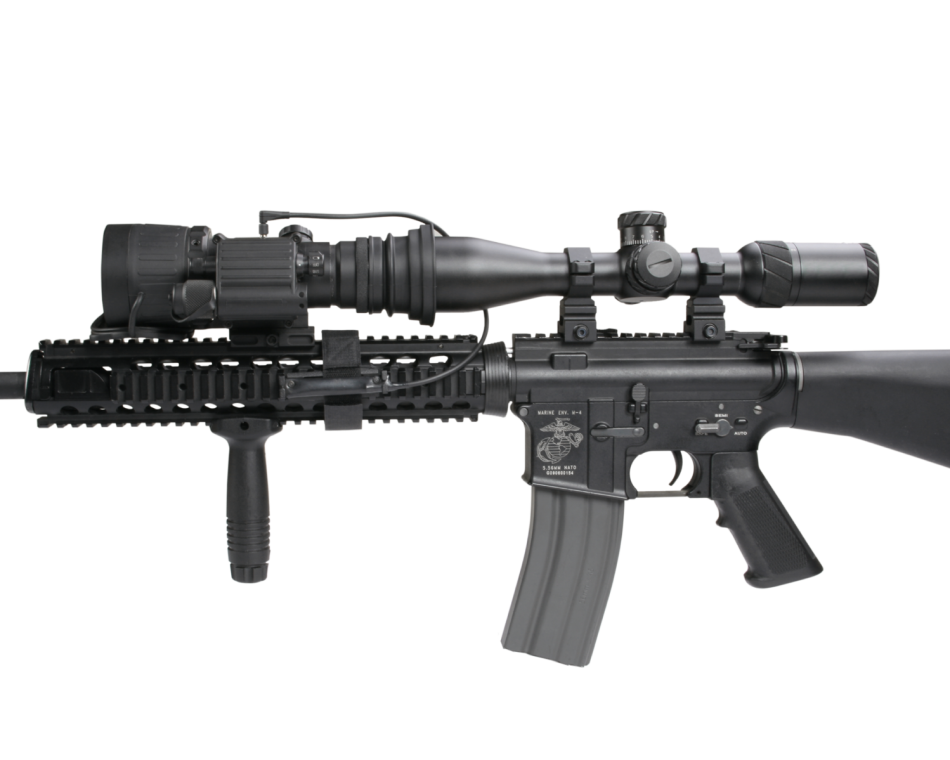

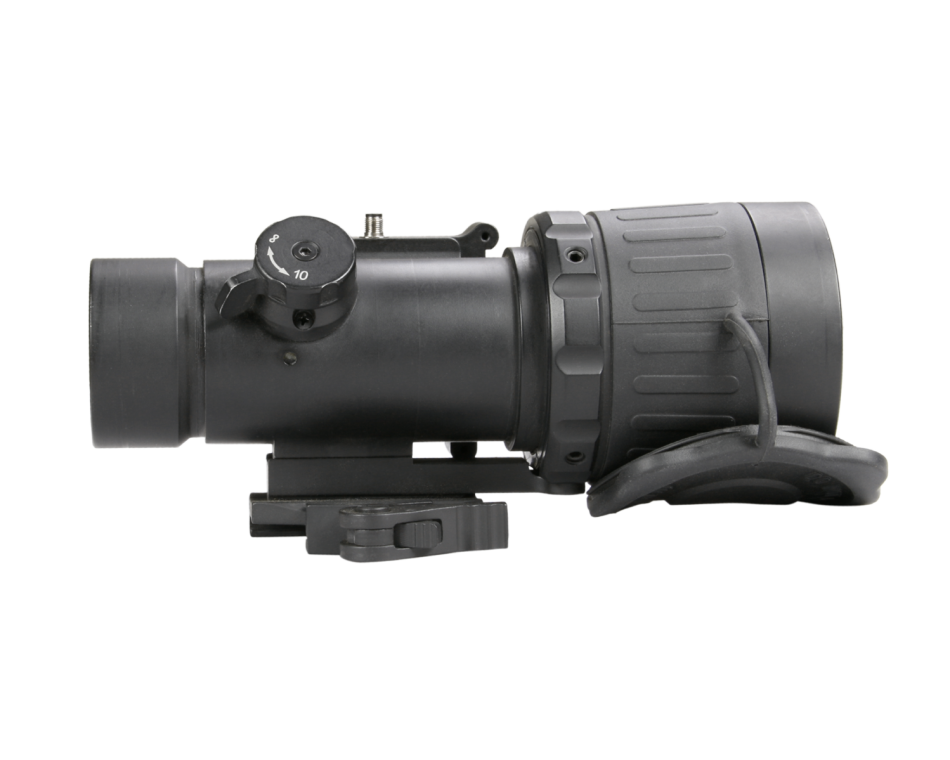

The Comanche 40 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 40 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price. The Comanche 40 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 12x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.


Warning: California's Proposition 65

Specifications

Image Intensifier Tube

Gen 3 Auto-Gated "White Phosphor Level 1"

Resolution

64-72 lp/mm

Magnification

1x

Lens System

80 mm; F/1.44

FOV

12°

Focus Range

10 m to Infinity

Controls

Direct

Led Indicators

Low battery; Excessive light conditions

Infrared Illuminator

Detachable Long Range IR Illuminator (not included)

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 40 hours (3 V) at 20°C; up to 30 hours (1. 5 V) at 20°C

Exit Pupil Diameter

40 mm

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +50°C (-58°F to +122°F)

Weight

1.04 kg (2.3 lbs)

Overall Dimensions

189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)

Package Includes

Quick-Release Mount, Battery Adapter , CR123A Battery, Light Suppressor, Light Suppressor for Day Scope, Remote Control, User Manual, Carrying Case
